48V 96V 220V 360V 384V High Voltage Rack Mount Lifepo4 Lithium Battery RS485 CAN BUS Communication

This product is composed of high quality lithium iron phosphate core (series-parallel connection) and advanced BMS management system. lt can beused as independent DC power supply or as "basic unit" to form a variety ofenergy storage lithium battery power supply systems.

lt has high reliability and long life.Products developed for applications such aspower grid energy storage,industrial and commercial energy storage, homehigh voltage energy storage, high voltage UPS, and data room.

Model

GBP 220100

GBP 220200

GBP 360100

GBP 360200

GBP 384100

GBP 384200

Type of Core

Lithium Iron Phosphate

Rated Energy (KWH)

22

44

36

72

40

80

Nominal Capacity (AH)

100

200

100

200

100

200

Nominal Voltage (V)

220.8

358.4

384

Operating Voltage Range (V)

179~259

291~420

312~450

Recommended Charge Voltage (V)

242

392

420

Recommended Discharge Cutoff Voltage (V)

210

342

366

Standard Charging Current (A)

50

80

50

80

50

80

Maximum Continuous Charge Current (A)

100

200

100

200

100

200

Standard Discharge Current (A)

50

80

50

80

50

80

Maximum Continuous Discharge Current (A)

100

200

100

200

100

200

Working Temperature

-20~65℃

Protection Level

IP20

Communication Interface

RS485/CAN

Weight (kg)

300

600

470

940

500

1000

Size (D*W*H mm)

530*650*1180

625*550*1810

530*550*1810

(625*550*2040)*2

530*550*2020

(625*550*1600)*2

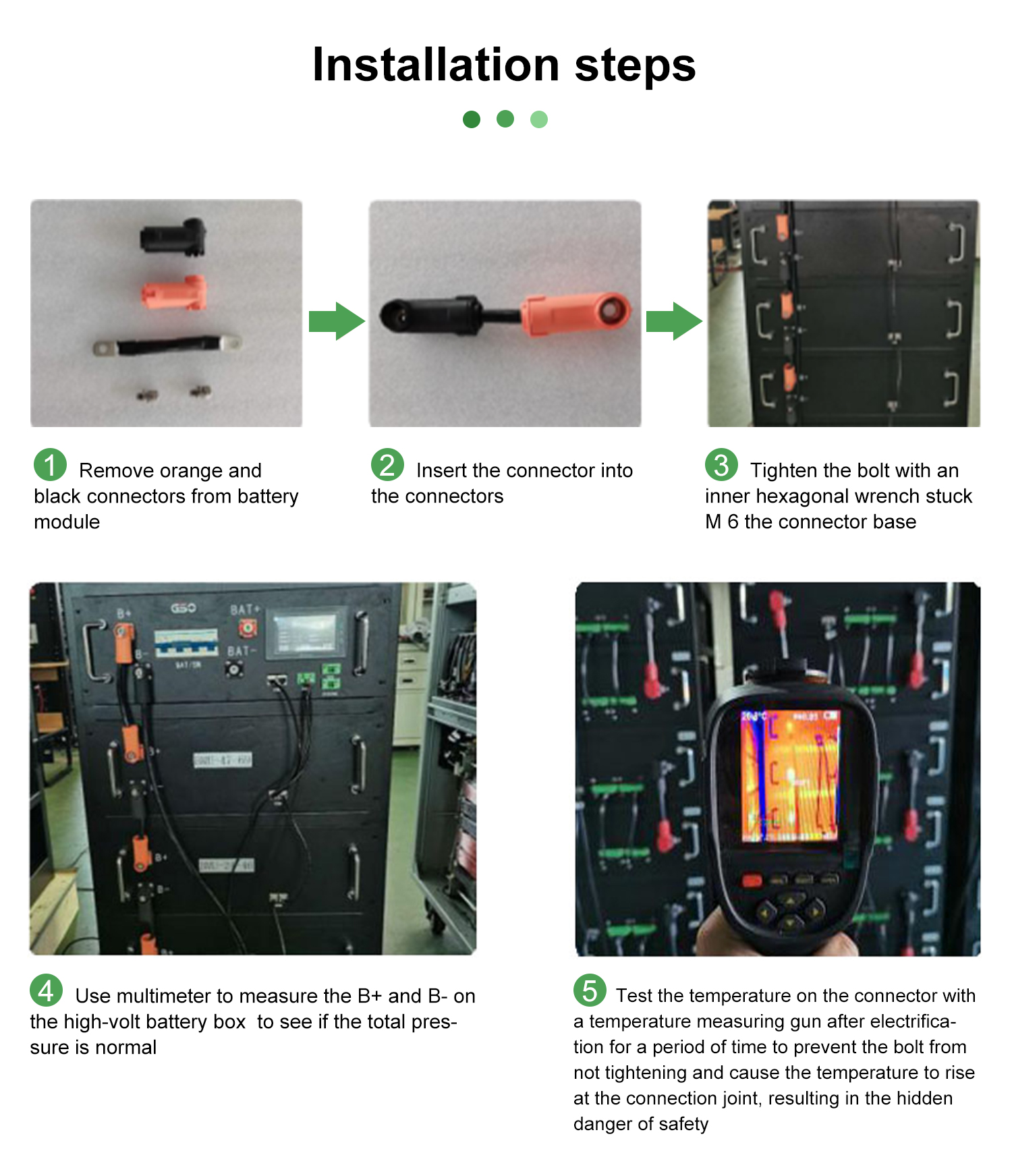

Installation Instructions

FAQ:

Q1: Is the battery BMS included?

A1: Yes.It's advanced BMS included and very safe to use.


Q2: How do you ship lithium battery?

A2: We can normally ship by sea. Special cases can be considered by air.


Q3: Does the battery have overcharge and overdischarge protection?

A3: Yes.We use advanced BMS and it can protect the battery well from overcharge and overdischarge.


Q4: What is the payment term?

A4: T/T, L/C, Credit Card etc.


Q5: What's the lead time?

A5: Sample lead time:3-7 days.Order lead time:12-25 days.


Q6: Do you provide after-sales serive?

A6: Yes,the warranty for lithium battery is 5 years or 10 years optional, if any quality problems on our side in this period, we can send new one as replacement.


Q7: How can guarantee quality?

A7: A pre-production sample before mass production; Always final Inspection before shipment.


Q8: Why should you buy from us not from other suppliers?

A8: We specialize in the development and production of energy storage batteries. We have a solid R&D team, dedicating to battery management system and energy management system products.
