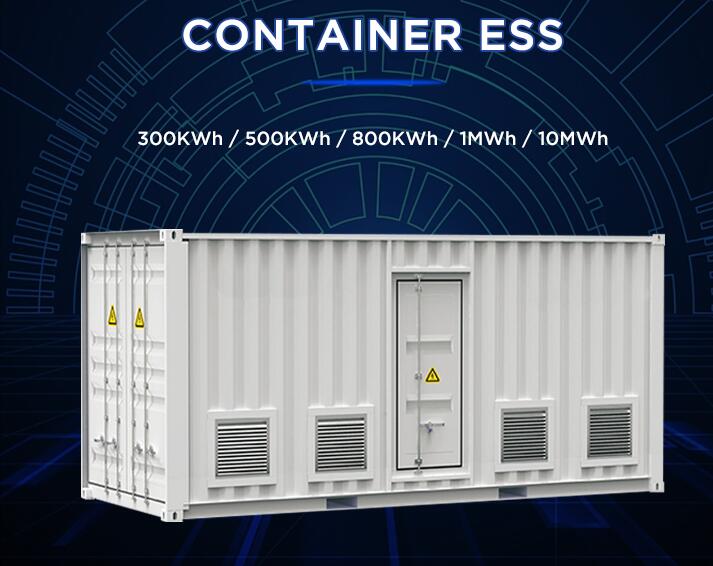

Containerized ESS 200kw 300kw 500kw Commercial Power Station Solar Energy Storage System

20+ years experience in Electric Power System industry. Different Brand and Type of battery Cells. 1300+ Patents. 10+ years experience in energy storage system development. We have our own independent R&D.Energy Management System EMS is a centralized energy management and data monitoring center for the whole energy storage power station system Data acquisition Control function HMI

Battery Storage System

Battery Management System(BMS) Battery Moulde&Pack Battery Rack Battery Cooling System Battery Fire Suppression System DC/AC Panel   IEC/UL/ CE/GB-T certified

Power Conversion System Complete product range(30kW~4000kW) , compliant to IEEE standards and applicable to various applications. Real-time active/reactive power scheduling & LVRT functions. Advanced droop control method, up to 99% power sharing efficiency for parallel connection of voltage sources . IEC/UL/ CE/GB-T certified

GSO Lithium Battery Energy Storage System Container

Model

GSO300KWH

GSO500KWH

GSO800KWH

GSO1MW

Solar Panel

300KW

500KW

800KW

1MW

PV Combiner Box

Cutomized

Customized

Customized

Customized

Hybrid Solar Inverter

300KW PCS

500KW PCS

800KW PCS

1MW PCS

Utility Voltage Range

380V/360V-440Vac; 480V/432V - 528Vac 50/45~55Hz; 60/55~65Hz

Solar Battery Packs

Lithium Battery Packs BMS/MBMS/EMS Protection; 2V GEL/OPzV Batteries Optional

Battery Racks

4 Racks

4 Racks

6 Racks

8 Racks

Data Monitor

Wifi Monitor/4G Terminal Monitor

PV Cable

4/6mm2

4/6mm2

4/6mm2

4/6mm2

Installation Brackets

Aluminium Alloy, Stainless Steel, Hot-dip Galvanized Steel,Ground Screw Mounting, Adjustable Brackets, Solar Tracker

Installation Site

Color Steel Tile/Tin Pitched Roof, Flat Roof, Cement/Soil Ground, Carport, etc

Installation Tools

Wire Cable Cutter & Stripper, Multi-Meter, Insulating gloves/covering etc

FAQ:

Q1: Is the battery BMS included?

A1: Yes.It's advanced BMS included and very safe to use.


Q2: How do you ship lithium battery?

A2: We can normally ship by sea. Special cases can be considered by air.


Q3: Does the battery have overcharge and overdischarge protection?

A3: Yes.We use advanced BMS and it can protect the battery well from overcharge and overdischarge.


Q4: What is the payment term?

A4: T/T, L/C, Credit Card etc.


Q5: What's the lead time?

A5: Sample lead time:3-7 days.Order lead time:12-25 days.


Q6: Do you provide after-sales serive?

A6: Yes,the warranty for lithium battery is 5 years or 10 years optional, if any quality problems on our side in this period, we can send new one as replacement.


Q7: How can guarantee quality?

A7: A pre-production sample before mass production; Always final Inspection before shipment.


Q8: Why should you buy from us not from other suppliers?

A8: We specialize in the development and production of energy storage batteries. We have a solid R&D team, dedicating to battery management system and energy management system products.
