SUN600G3-EU-230 Support Reactive Power Compensation Micro Inverter 600w with WiFi PLC Zigbee Communication


Products Description

Product Parameters

Model

SUN600G3-EU-230

Input Data(DC)


Recommended input Power (STC)

210-400W(2 Piece)

Maximum input DC voltage

60V

MPPT Voltage Range

25-55V

Operating DC voltage Range

20-60V

Max. DC Short Circuit Current

16A

Max. input Current

10.5A*2

Output Data(AC)


Rated output Power

600W

Maximum output Power

660W

Maximum output Current

2.9A

Nominal Voltage / Range

230V/184-265V

Nominal Frequency / Range

50/60Hz

Extended Frequency / Range

45~55Hz/55~65Hz

Power Factor

>0.99

Maximum units per branch

8

Efficiency


CEC Weighted Efficiency

95%

Peak lnverter Efficiency

96.5%

Static MPPT Efficiency

99%

Night Time Power Consumption

50mW

Mechanical Data


Ambient Temperature Range

-40~65°C

Size (mm)

212Wx229Hx40D (Without mounting bracket and cable)

Weight (kg)

3.5

Cooling

Natural cooling

Enclosure Environmental Rating

IP67

Features


Compatibility

Compatible with 60~72 cell PV modules

Communication

Power line / WIFI/ Zigbee

Compliance

EN50549、VDE0126、VDE4105、IEC62109、CE、INMETRO

Warranty

10years

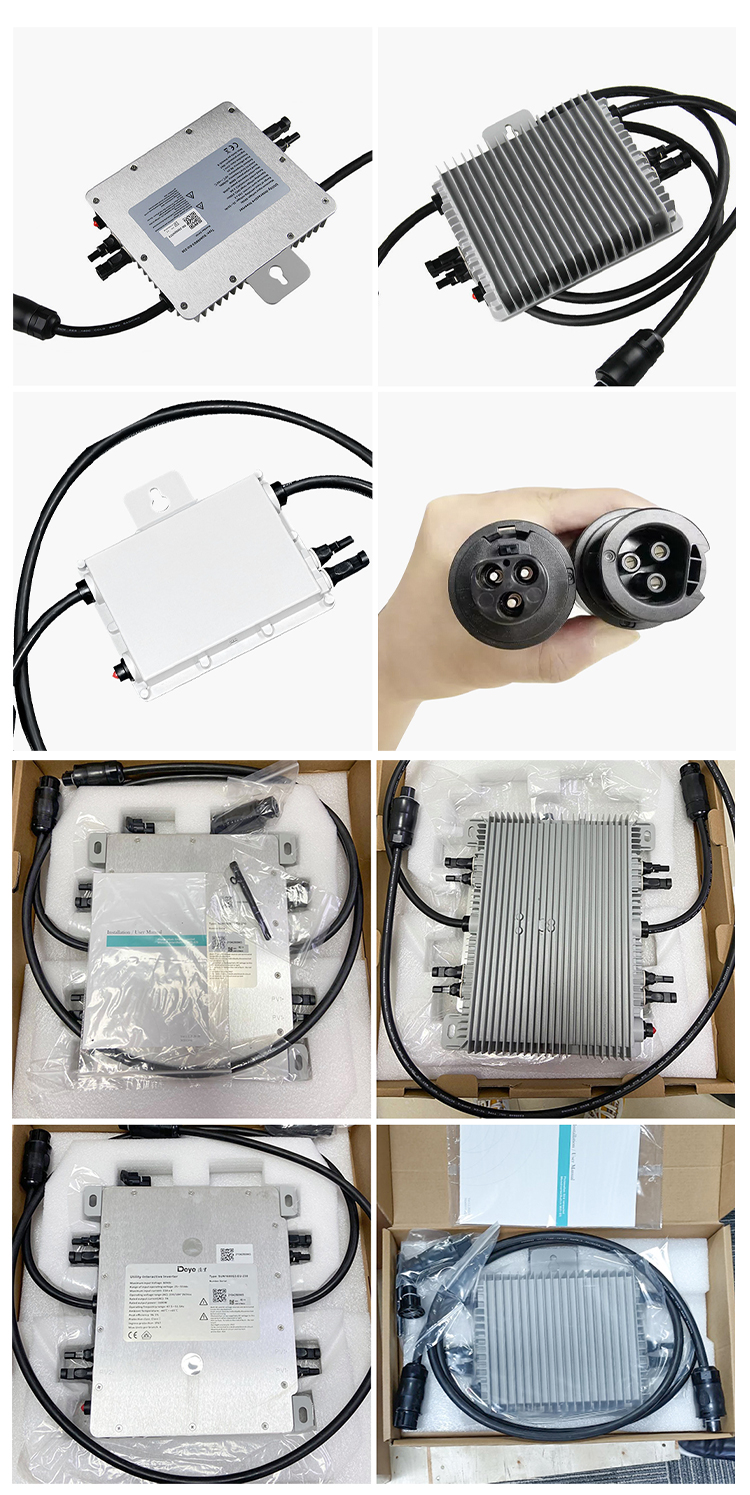

Details Images
