Jinko Solar 500watt 530watt 535watt 540watt Monocrystalline Half-cell Solar Panels

Our technical and sales teams are ready to meet your requirements and answer any question involving the various applications that use our product’s.

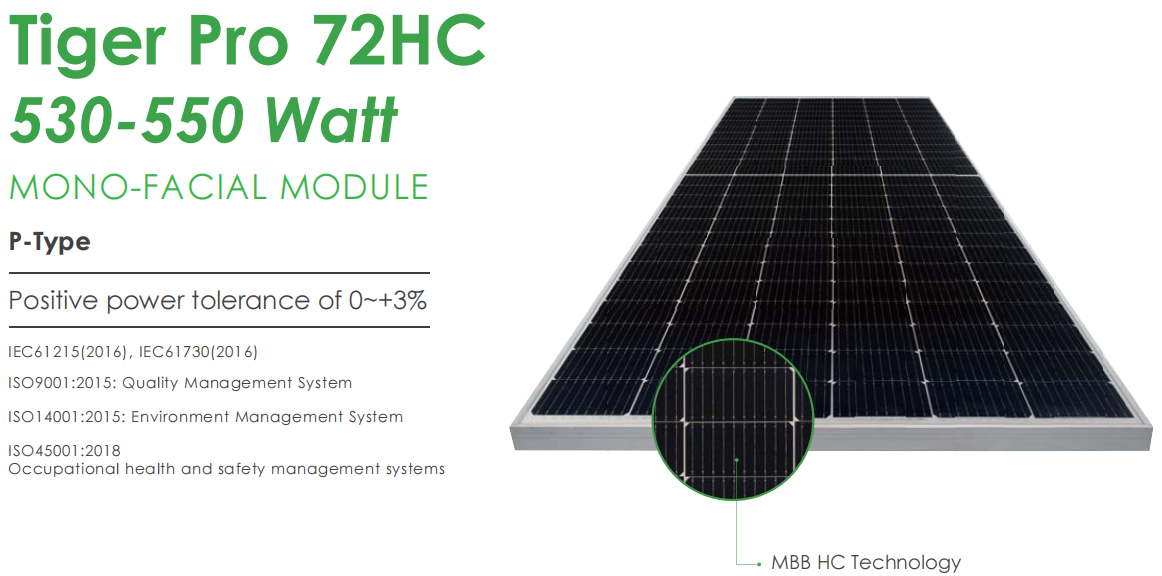

Tiger Pro 72HC 530-550 Watt MONO-FACIAL MODULE P-Type Solar Panel

Cell Type	P type Mono-crystalline
No.of Half-cells	144 (6×24)
Dimensions	2274×1134×35mm (89.53×44.65×1.38 inch)
Weight	28 kg (61.73 lbs)
Front Glass	3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Output Cables	TÜV 1x4.0mm2,(+) 400mm, (-) 200mm or Customized Length

KEY FEATURES

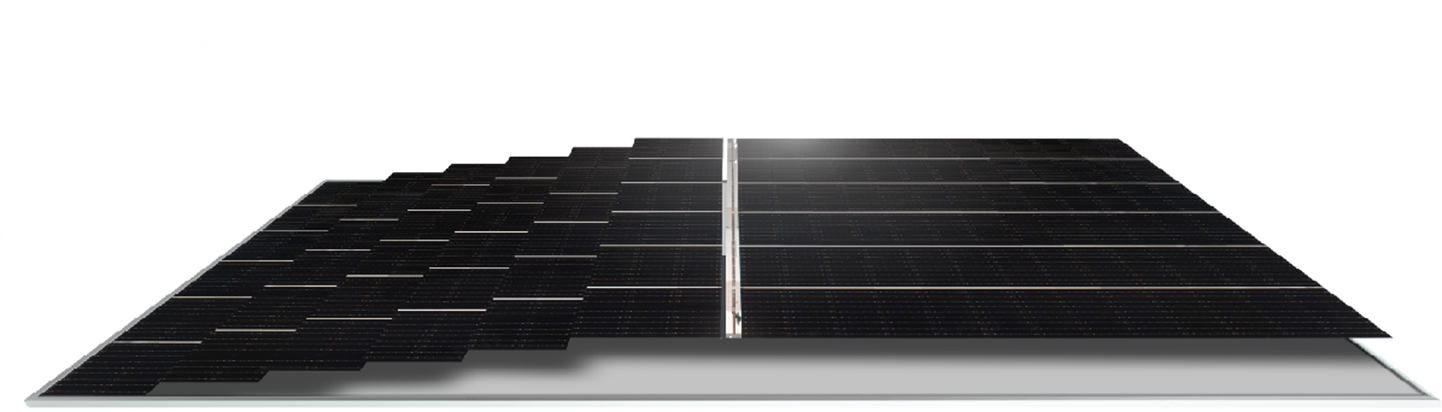

Multi Busbar Technology
Better light trapping and current collection to improve module power output and reliability.

Longer Life-time Power Yield
0.55% annual power degradation and 25 year linear power warranty.

Reduced Hot Spot Loss
Optimized electrical design and lower operating current for reduced hot spot loss and better temperature coefficient.

Low-light Performance
Advanced glass and cell surface textured design ensure excellent performance in low-light environment.

Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).

Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance.

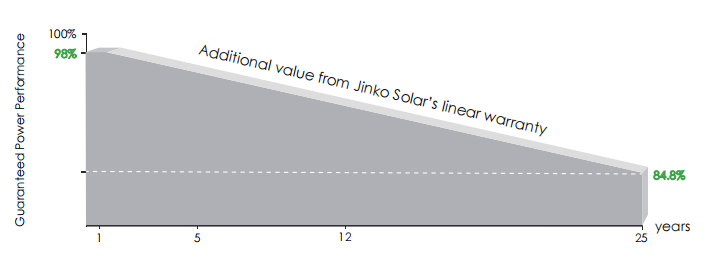

LINEAR PERFORMANCE WARRANTY
12 Year Product Warranty
25 Year Linear Power Warranty
0.55% Annual Degradation Over 25 years

Product Parameters Thông số kỹ thuật

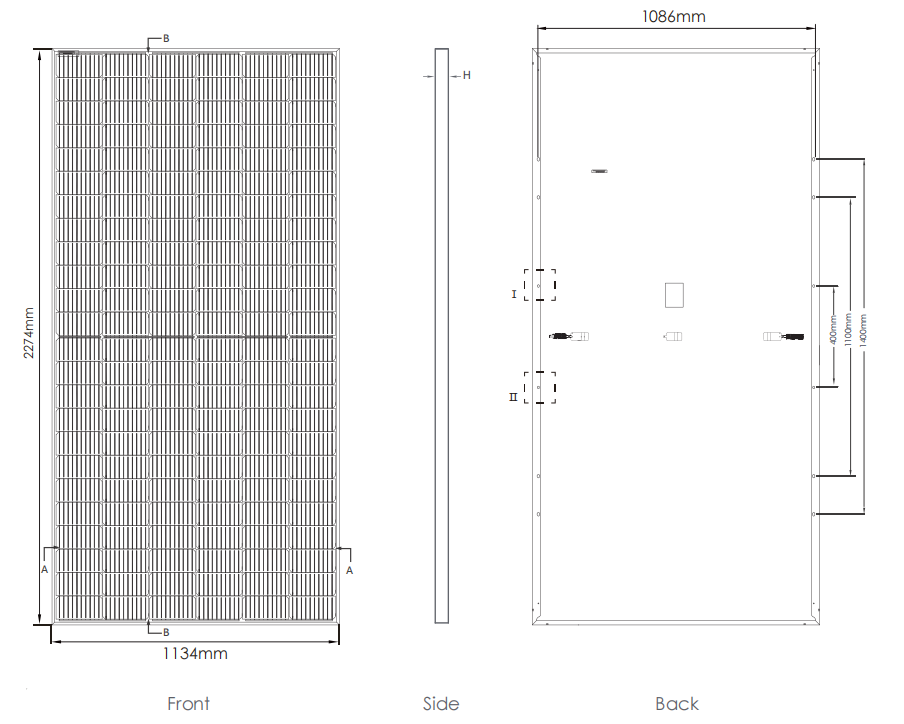

ENGINEER DRAWING

Tiger Pro 72HC 530-550 Watt MONO-FACIAL MODULE P-Type Solar Panel

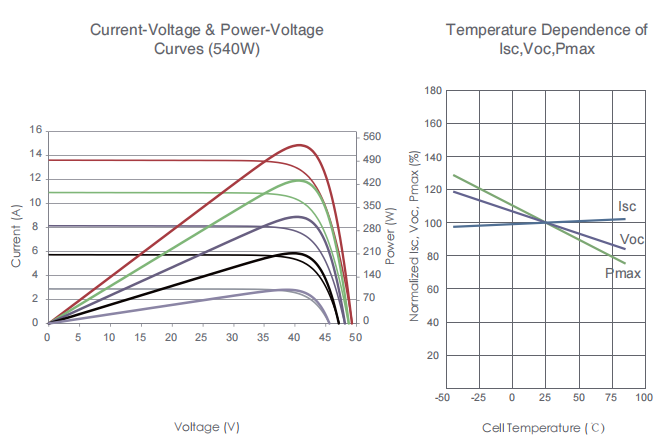

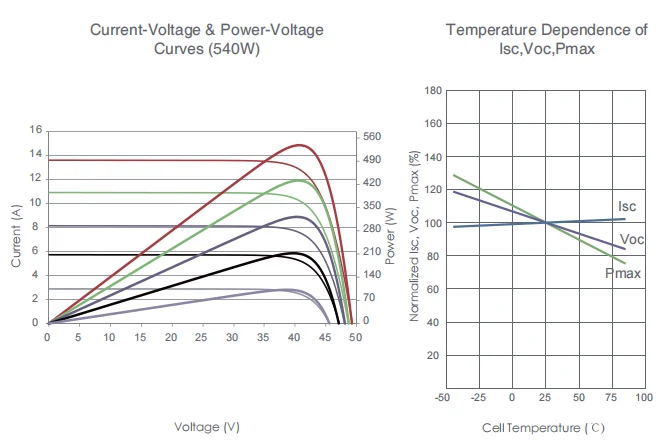

Electrical Performance&Temperature Dependence

Tiger Pro 72HC 540 Watt MONO-FACIAL MODULE P-Type Solar Panel

Module Type	JKM530M -72HL4(-V)		JKM535M -72HL4(-V)		JKM540M -72HL4(-V)		JKM545M -72HL4(-V)		JKM550M -72HL4(-V)
	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT	STC NOCT
Pmax.(W)	530	394	535	398	540	402	545	405	550 409
Vmp(V)	40.56	37.84	40.63	37.91	40.70	38.08	40.80	38.25	40.90 38.42
Imp(A)	13.07	10.42	13.17	10.50	13.27	10.55	13.36	10.06	13.45 10.65
Voc(v)	49.26	46.50	49.34	46.57	49.42	46.65	49.52	46.74	49.62 46.84
Isc(A)	13.71	11.07	13.79	11.14	13.85	11.19	13.94	11.26	14.03 11.33
Module Efficiency	20.55%(STC)		20.75%(STC)		20.94%(STC)		21.13%(STC)		21.33%(STC)
Operating Temperature（℃）: -40℃~+85℃
Maximum System Voltage: 1000/1500VDC (IEC)
Maximum Series Fuse Rating: 25A
Power Tolerance: 0~+3%
Temperature Coefficients of Pmax: -0.35%/℃
Temperature Coefficients of Voc: -0.28/℃
Temperature Coefficients of Isc: 0.048%/℃
Nominal Operating Cell Temperature(NOCT): 45±2℃

STC: Irradiance 1000W/m2 Cell Temperature 25°C AM=1.5

NOCT: Irradiance 800W/m2 Ambient Temperature 20°C AM=1.5 Wind Speed 1m/s

Product Details Chi tiết sản phẩm

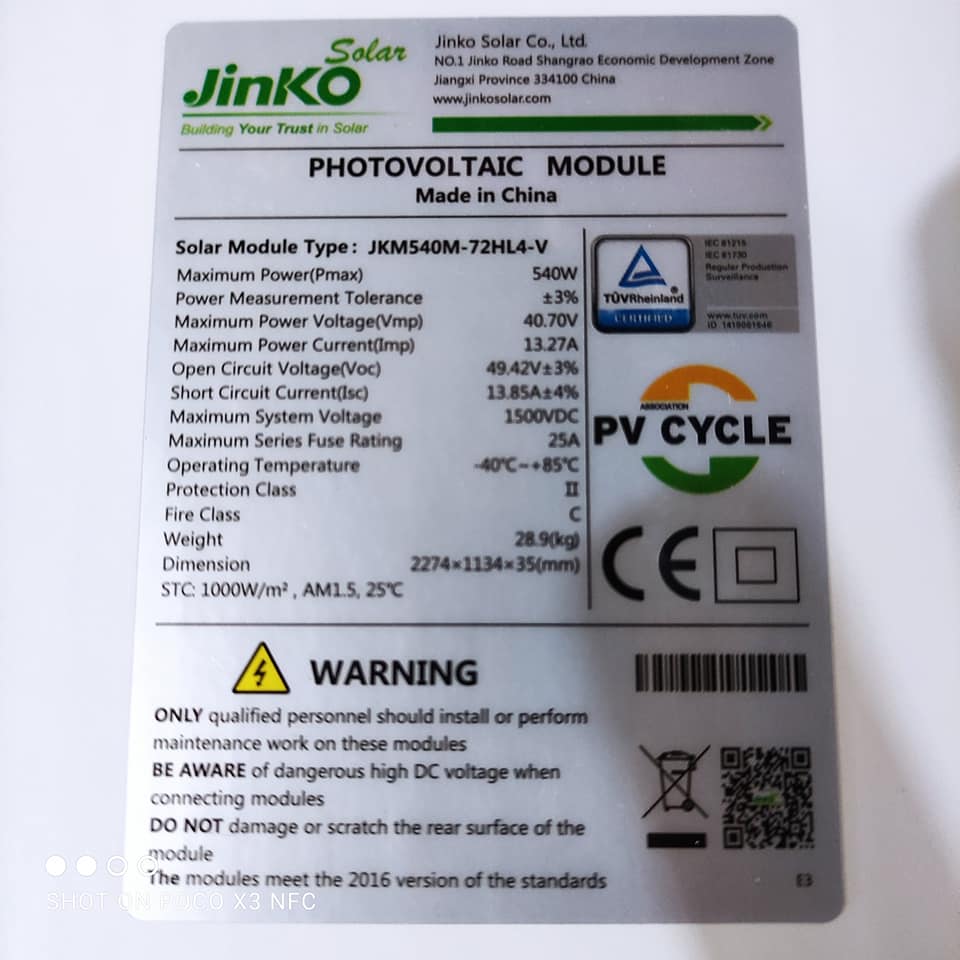

Jinko Solar Label

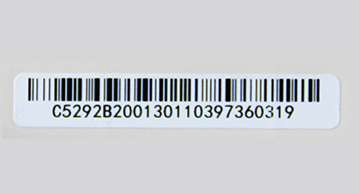

Barcode on the front panel

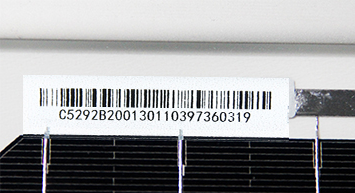

Barcode on the back panel

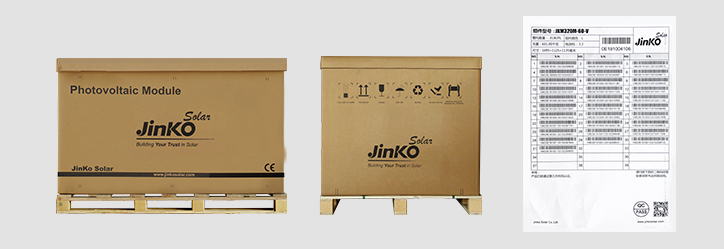

Packing/Packing list

Solar Panel
