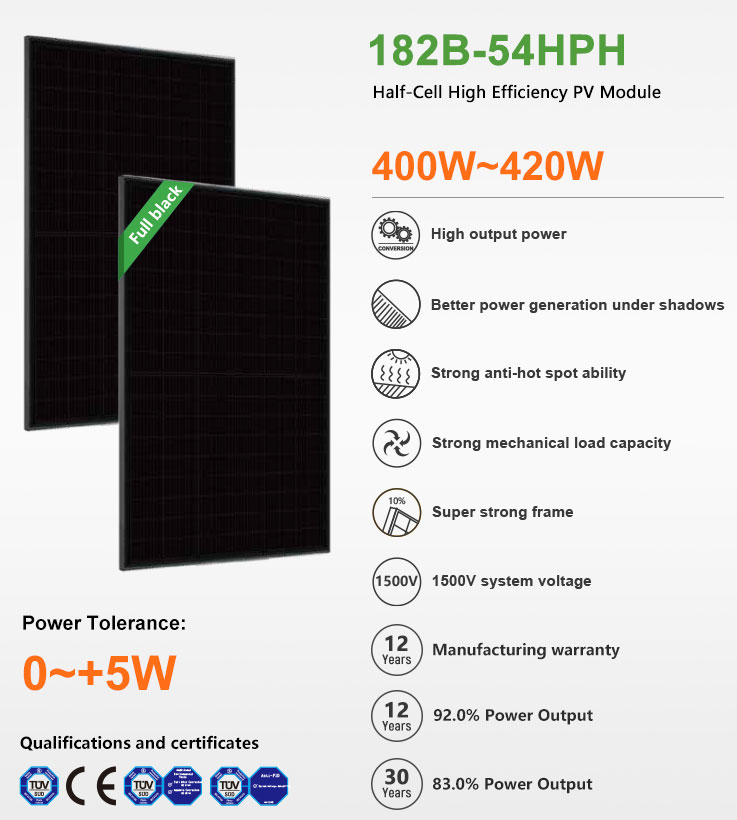

108 Cells Monocrystalline All Black Solar Panels 400 watt Full Black Solar Panels EU


STC-Electrical Characteristics

Module Type

182B-54HPH 400-420W

Maximum Power (Pmax)

400W

405W

410W

415W

420W

Open-circuit Voltage (Voc)

37.14V

37.23V

37.23V

37.41V

37.50V

Maximum Power Voltage (Vmp)

31.01V

37.21V

31.45V

31.69V

31.93V

Short-circuit Current (Isc)

13.79A

13.87A

13.95A

14.03A

14.11A

Maximum Power Current (Imp)

12.90A

12.98A

13.04A

13.10A

13.16A

Module Efficiency (%)

20.48%

20.74%

21.00%

21.25%

21.50%

Power Tolerance

0~+5W

Temperature Coefficient of Isc

0.05%/°C

Temperature Coefficient of Voc

-0.31%/°C

Temperature Coefficient of Pmax

-0.35%/°C

Standard Test Environment: Irradiance 1000W/m², Cell temperature 25°C, Spectrum AM1.5

Model

182B-54HPH 400-420W

Modules per pallet

36 pieces

Modules per 40HQ

936 pieces
